Arhitektualni projektor

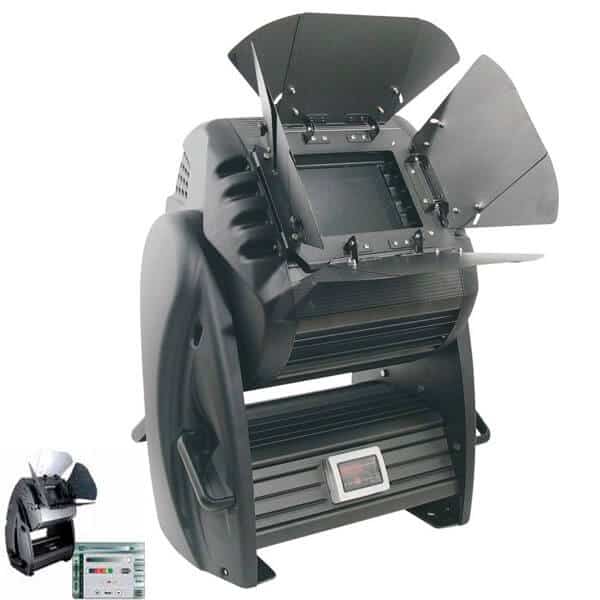

The ARC 575 is an architectural colour changer with IP55 protection level, fitted with a discharge 575 W lamp (luminous flux 49.000 Lumens) particularly suitable for illuminating exteriors (buildings, monuments, public spaces, etc) and interiors (shopping centers, museums, etc.), and in the most demanding applications requiring a projector capable of colouring large areas at long distances with an intense and uniform light beam.
The ARC 575 incorporates a CMY colour mixing system, Dimmer/Shutter/Strobe, internal Macros, possibility of independent operation (Master / Slave mode), 13 preset programs + 1 programmable.
Body
Steel frame, body made in anodized aluminium
IP55
High protection level (IP55) against penetration by solid bodies and liquids, for installation both indoors and outdoors in total operating safety.
Lamp
Lamp: MSR 575/2
Lamp on/off via DMX
Optical group
Aluminium parabolic reflector
Light efficiency 1980 Lux at 5 m
Dimmer / shutter / Strobe
Linear dimmer
Shutter
Strobe from 0,85 flash/sec to 10 flash/sec
Colours
CMY colour generation system with 3 palettes for gradual and linear insertion
Colour change with blackout sync
Internal microcomputer
8 DMX channels
Macros
Automatic selection of colours, rainbow effects) controlled via DMX
Independent operation
Possibility of independent operation (Master / Slave mode), 13 preset programs + 1 programmable (16 scenes).
Power supply
Electromagnetic ballast 230V 50/60 Hz
Power consumption 700 W.
Installation
4 fixing points on the bottom, used to attach connection accessories for trusses, etc.
CE safety standards
CE EN60598-1; CE EN60598-2-17; CE EN 55 103-1
Thermal
Operating ambient temperature: -10° / 40°
Weight
48 Kg
